| camera Features |
| Lens | 3.6mm MP MRT |
| LED | 3-Array LEDS |
| IR Range | 30M |
| OSD Menu | Support(camera title,Time,video loss,camera lock, |
| Motion detection,recording) |
| Day/Night | Auto(ICR)/Color/ B/W |
| Noise Reduction | 3D/2D |
| General |
| Power supply | DC12V±10% |
| Working Environment | -10C~+6C/Less than 95%RH(no condensation) |
| Transmission Distance | Over 500M via 75~3 Coaxial Cable |

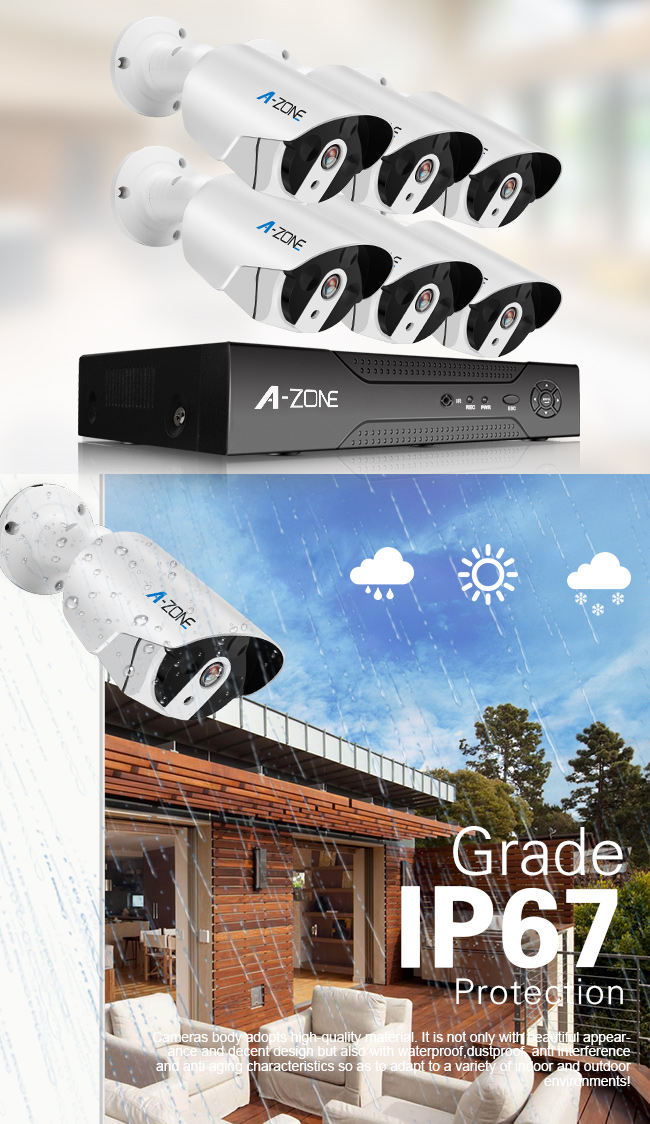

| Ingress Protection | IP67 |
| NVR Features | |
| Main Prcessor | Embedded processor |
| Operating system | Embedded LINUX |
| Video Input | 4 channel,BNC |
| Standard | NTSC(525Line,60f/s),PAL(625Line,50f/s) |
| Audio Input | 4 channel,BNC |
| AUDIO Output | 1 channel,BNC |
| Audio Two-way Talk | Reuse audio input/output channel 1 |
| Display Interface | 1 HDMI,1VGA,1BNC |
| Resolution | 1920*1080,1280*1024,1280*720,1024*768,800*600 |
| Display Split | 1/4/8/9 1280*1024,20 |
| Privacy Masking | 4 rectangular zones(each camera) |
| OSD | camera title,Time,Video loss,Camera lock,Motion detection,Recording |
| Video/Audio compression | H.264/G.711 |
| Resolution | 720P(1280*720/1280*600)/960h(960*576/960*480)/D1/4CIF(704*576/704*480)/CIF(352*288/352*240)/QCIF(176*144/176*120) |
| Record Rate Main stream | 720P/960H/D1/HD1/2CIF/CIF(1-25/30fps) |
| Extra Stream | CIF/QCIF(1-25/30fps) |
| Bit Rate | 48-6144kb/s |
| Record Mode | Manual,Schedule(Regular(continuous),MD),Stop |
| Record Interval | 1-120min(default;60min),Pre-record;1-30sec,Post-record:10-300 |
| Trigger Events | Recording,PTZ,Tour,Video Push,Email,FTP,Spot,Buzzer&Screen |
| Video Detection | Video Detection,Motion Detection,MD Zones:396(22/8),Video loss&camera Blank |
| Alarm Input | 4 channel |
| Sync Playback | 1/4 |
| Search Mode | Time/Date,MD&Exact search(accurate to second) |
| Playback Functions | Play,Pause,Stop,Rewind,Fast play,Slow play,Next file,Previous file,Next camera,Previous camera,Full screen,Repeat,Shuffle,Backup selection |
| Backup Mode | USB Device/network |
| Network Ethernet | RJ-45 port(10/100M/1000M) |
| Network Functions | PPPOE,DDNS,FTP,IP Fiter |
| Max User Access | 128 users |
| Smart Phone | iphone,ipad,Android,Windows,Phone |
| Power supply | DC12V |
| size | 250*45*235mm |
